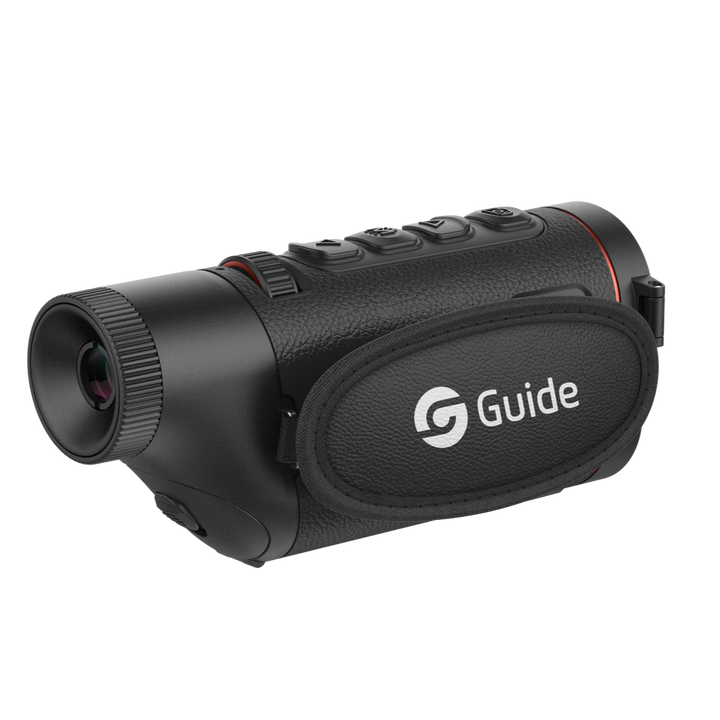

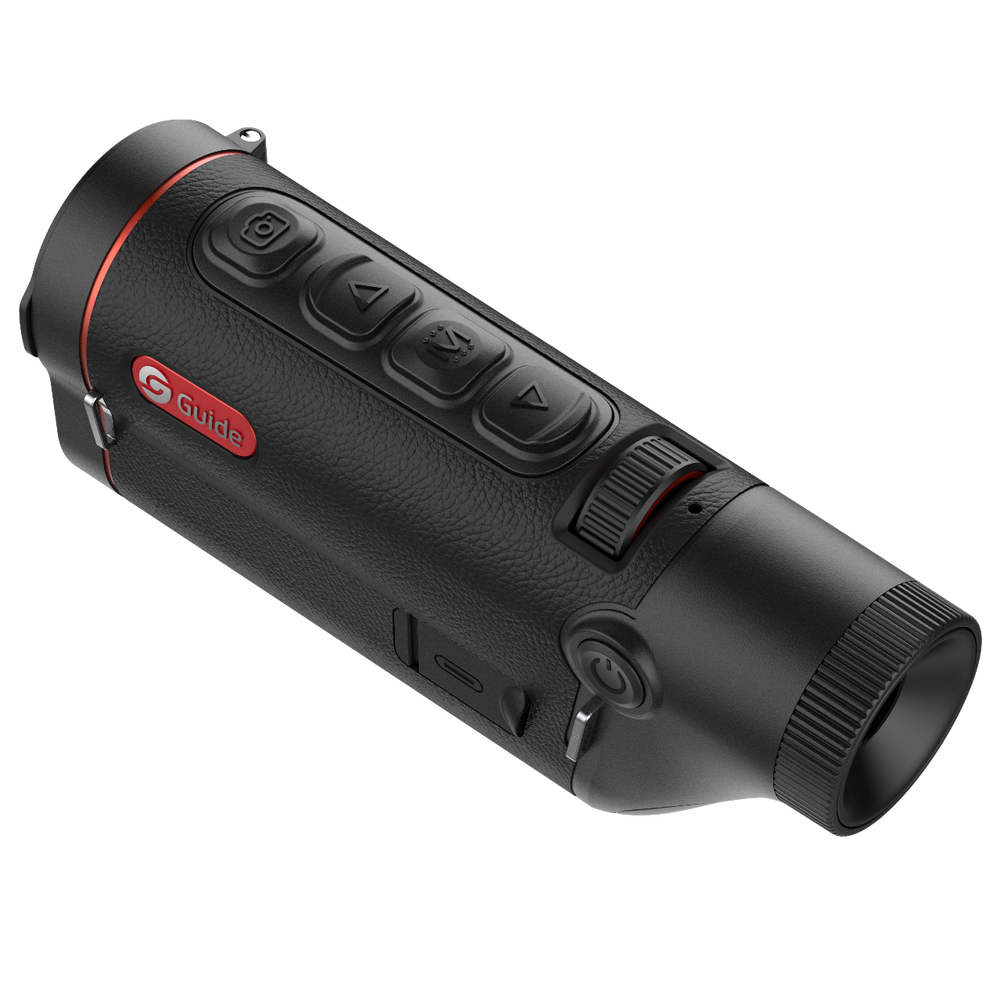

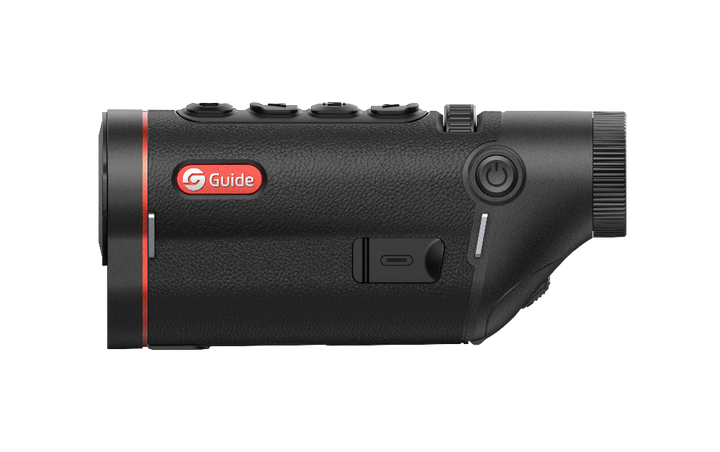

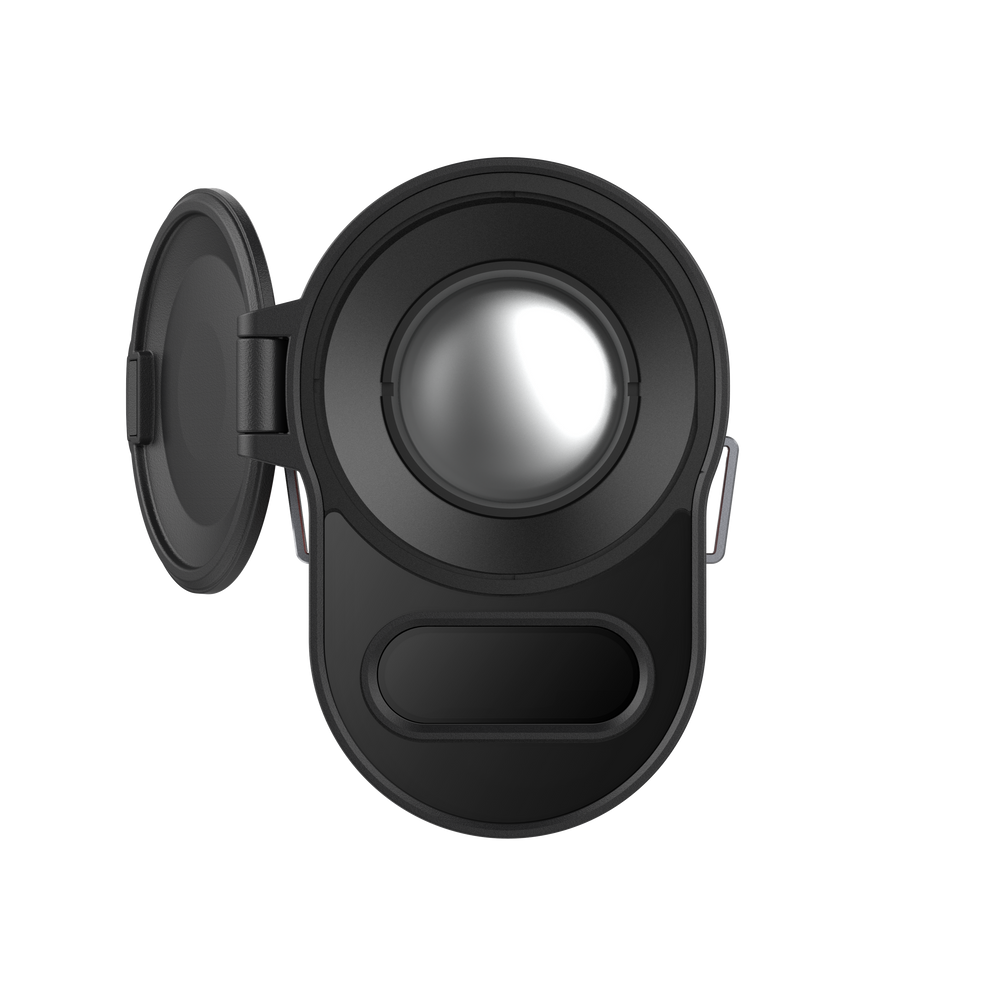

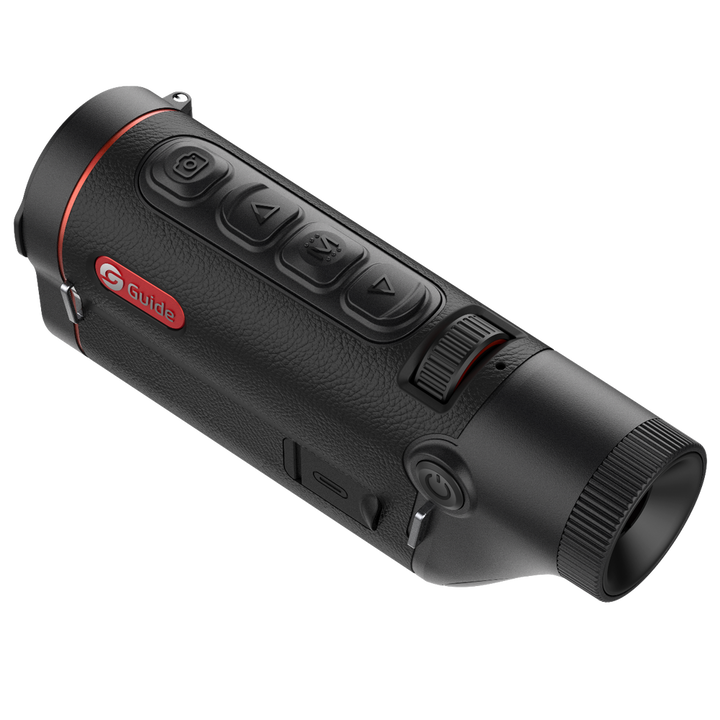

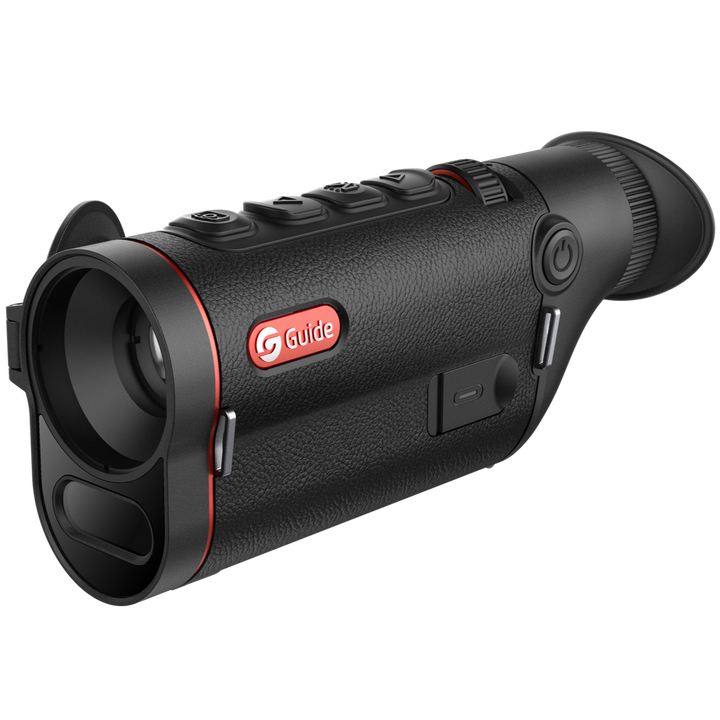

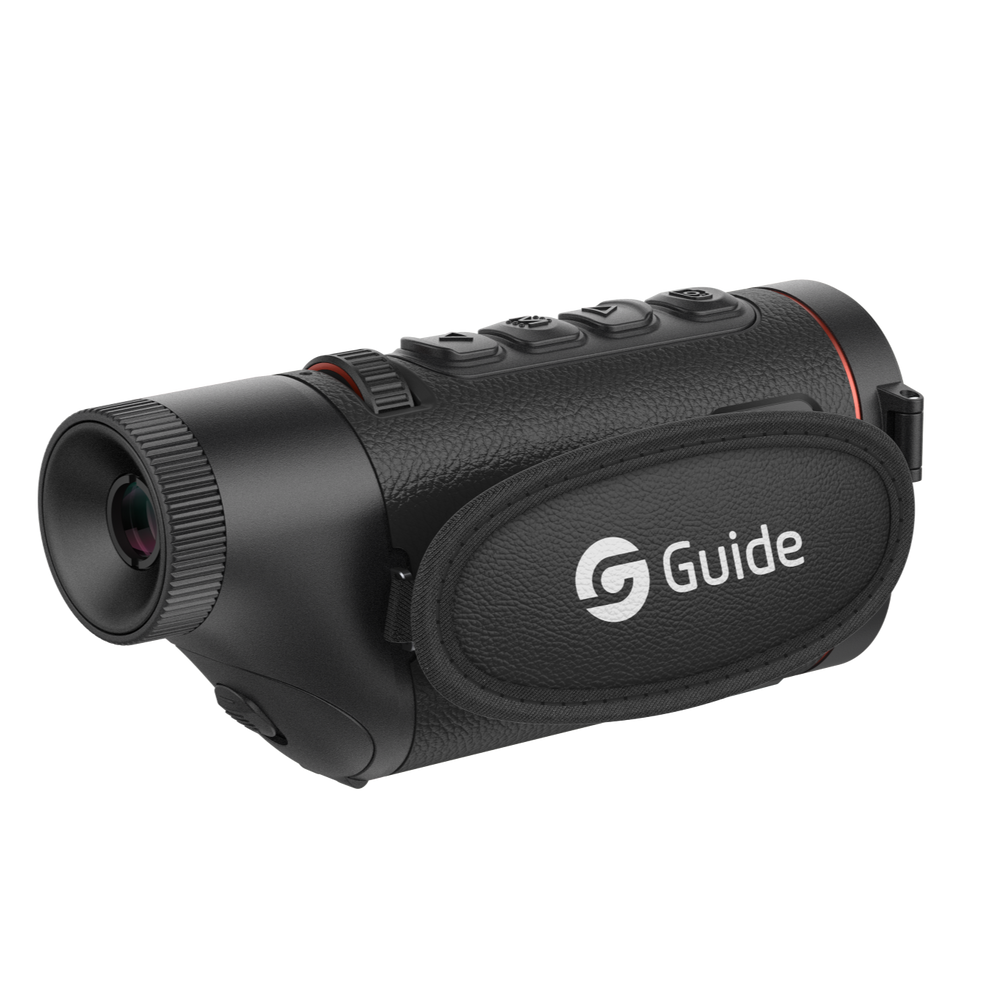

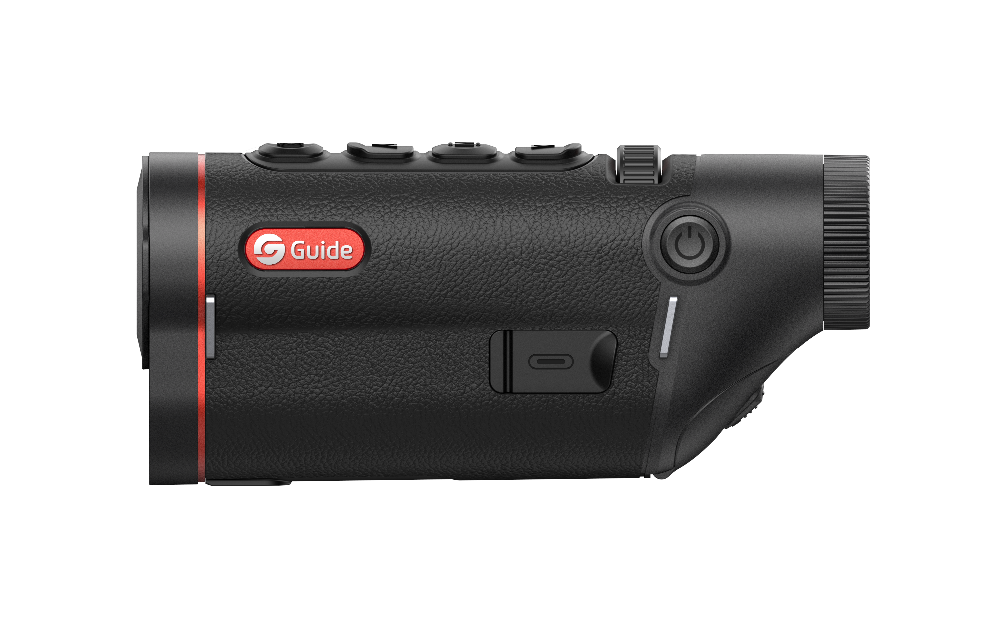

The TD Gen 3 Series Handheld Thermal Imaging Monocular is our latest compact night vision device. Equiped with a 640 x512 infrared detector and a 35mm lens, it delivers a powerful detection range of up to 1950 yard and a laser rangefinder at 1090 yard.
Perfect for all users, its ambidextrous design is ergonomic and enable one-handed operation. Up to 10 hours of runtime with a single 18650 battery, you can trust its performance for a night long hunt.
| Sensor |
| Type |
Uncooled VOx Infrared Detector, 8 to 14μm |
| Resolution |
640×512@12μm |
| NETD |
20mK |
| Frame rate |
50Hz |
| Lens |
| Objective lens |
35mm F1.0 |
| Field of view |
12.5°×10° |
| FOV m@100m |
22×17 |
| Magnification |
2.0x~16x |
| Detection range |
1800m/1950yd |
| Focus |
Manual |
| Digital Zoom |
8x |
| Display |
| Display type |
0.36'' AMOLED 1280×960 |
| Color palettes |
White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Eyepiece |
Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x |
| Hardware |
| Laser rangefinder |
1000m/1090yd |
| WIFI |
2.4G, 5G |
| Interface |
USB-C |
| Others |
Microphone, Bluetooth |
| System |
| Recording function |
Photo/Video (Audio recording included) |
| Memory capacity |
32GB |
| Power |
| Battery type |
Single, Replaceable 18650 Battery |
| Operating time |
10 hours |
| Environmental |
| Operating temp. |
-20°C to 50°C / -4°F to +122°F |
| Encapsulation |
IP67 |
| Physical |
| Weight (g/oz) |
376/13.26 |
| Size (mm/in) |
159×54×74/6.26×2.13×2.91 |
| Standard |

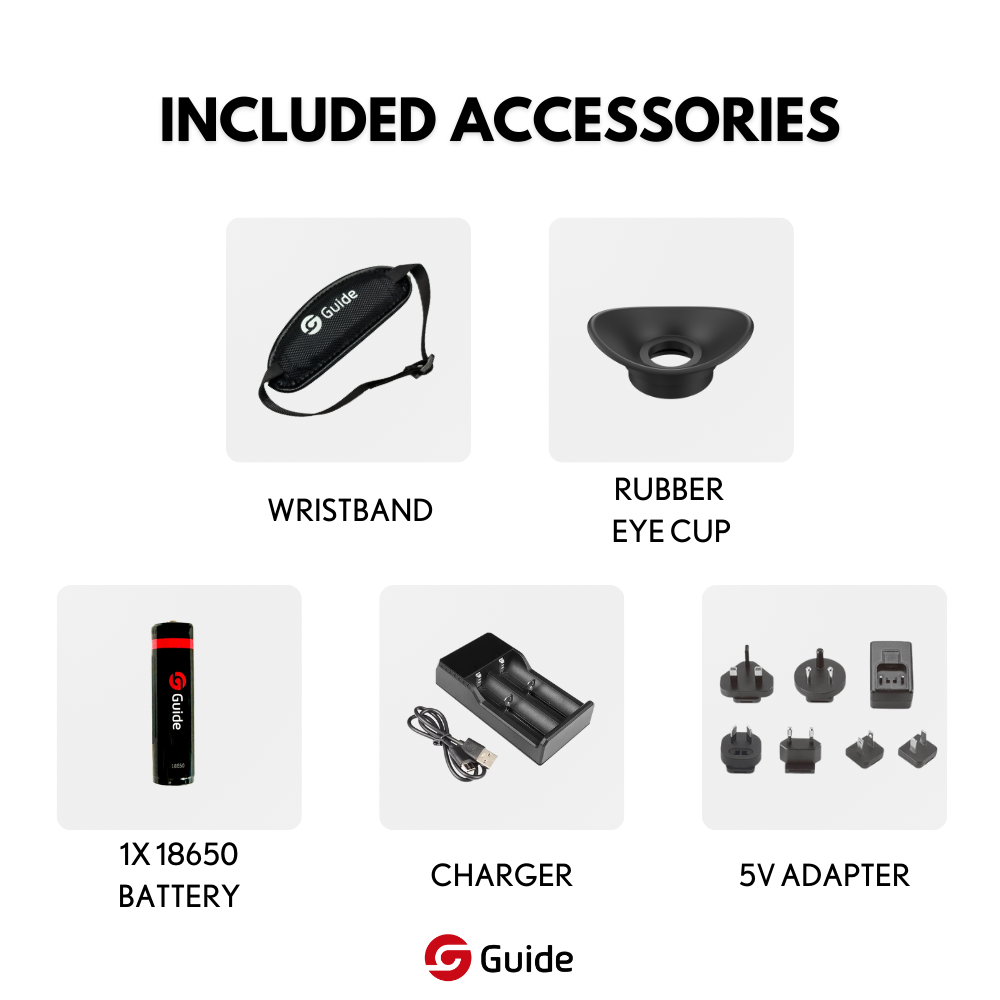

Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card |
| Optional |
Bluetooth Remote Control, 18650 Battery |
