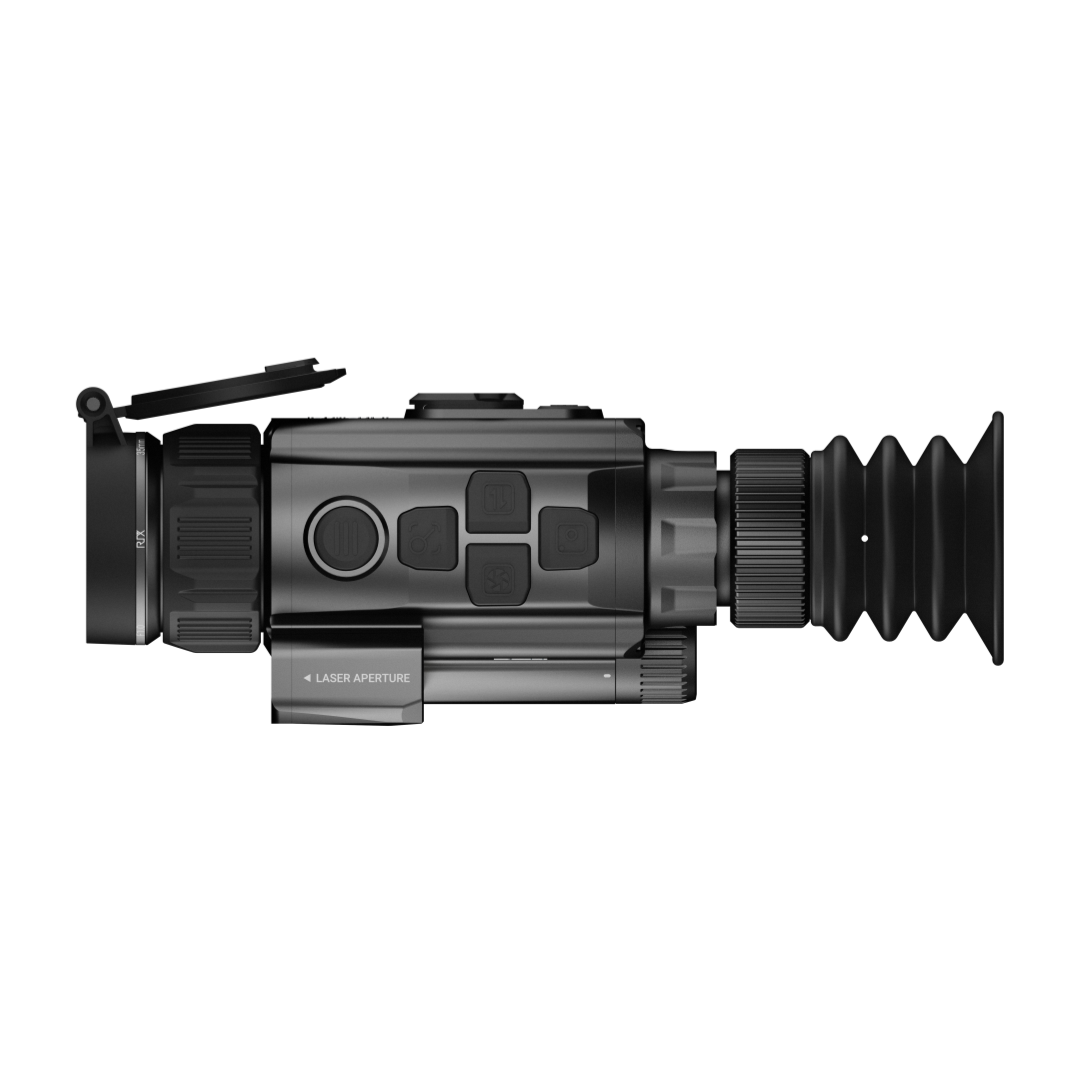

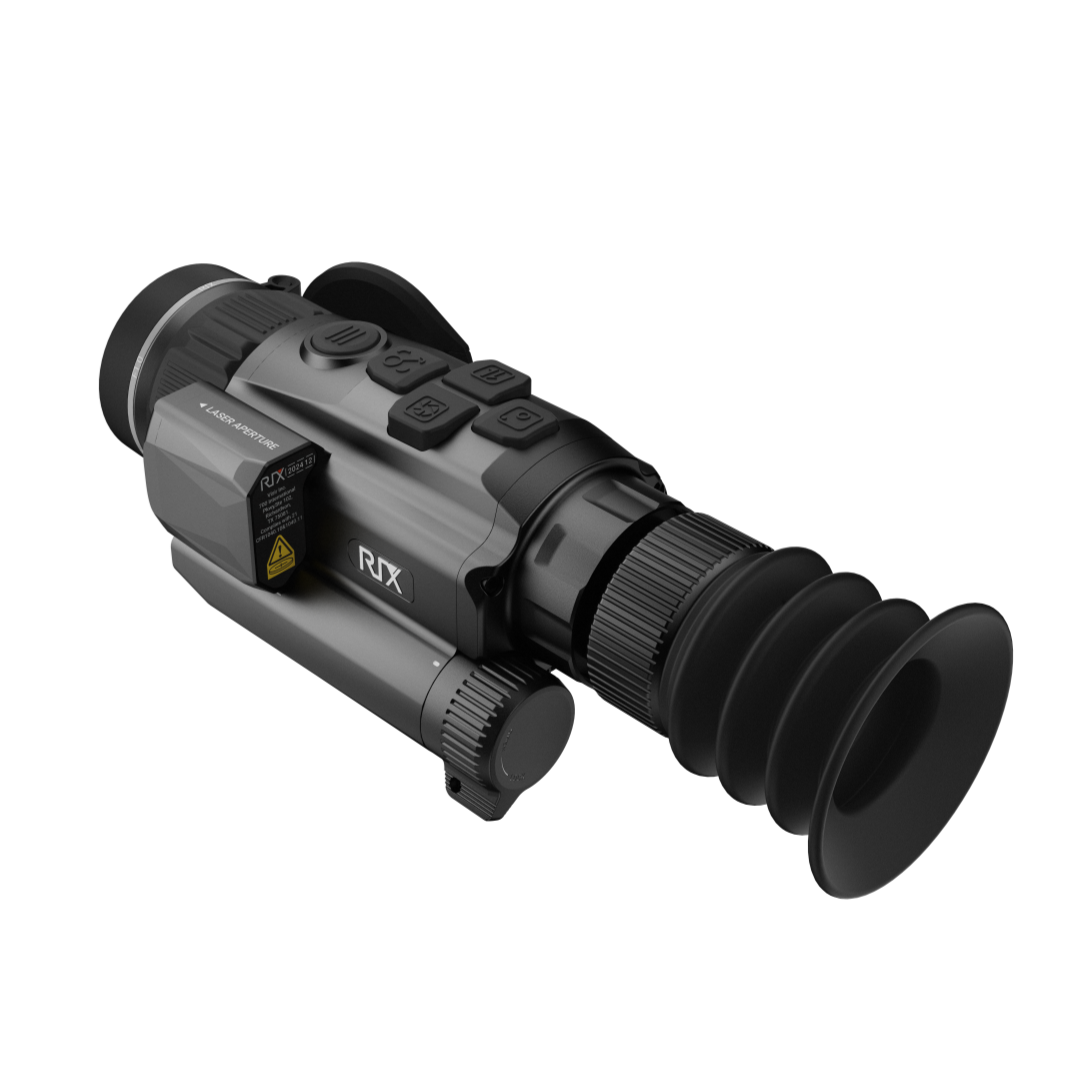

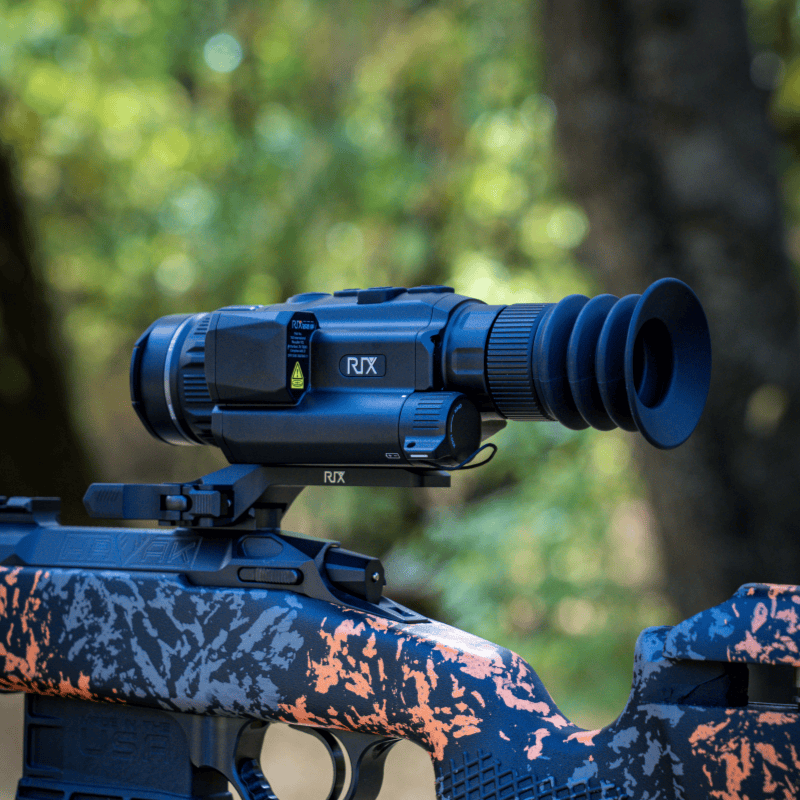

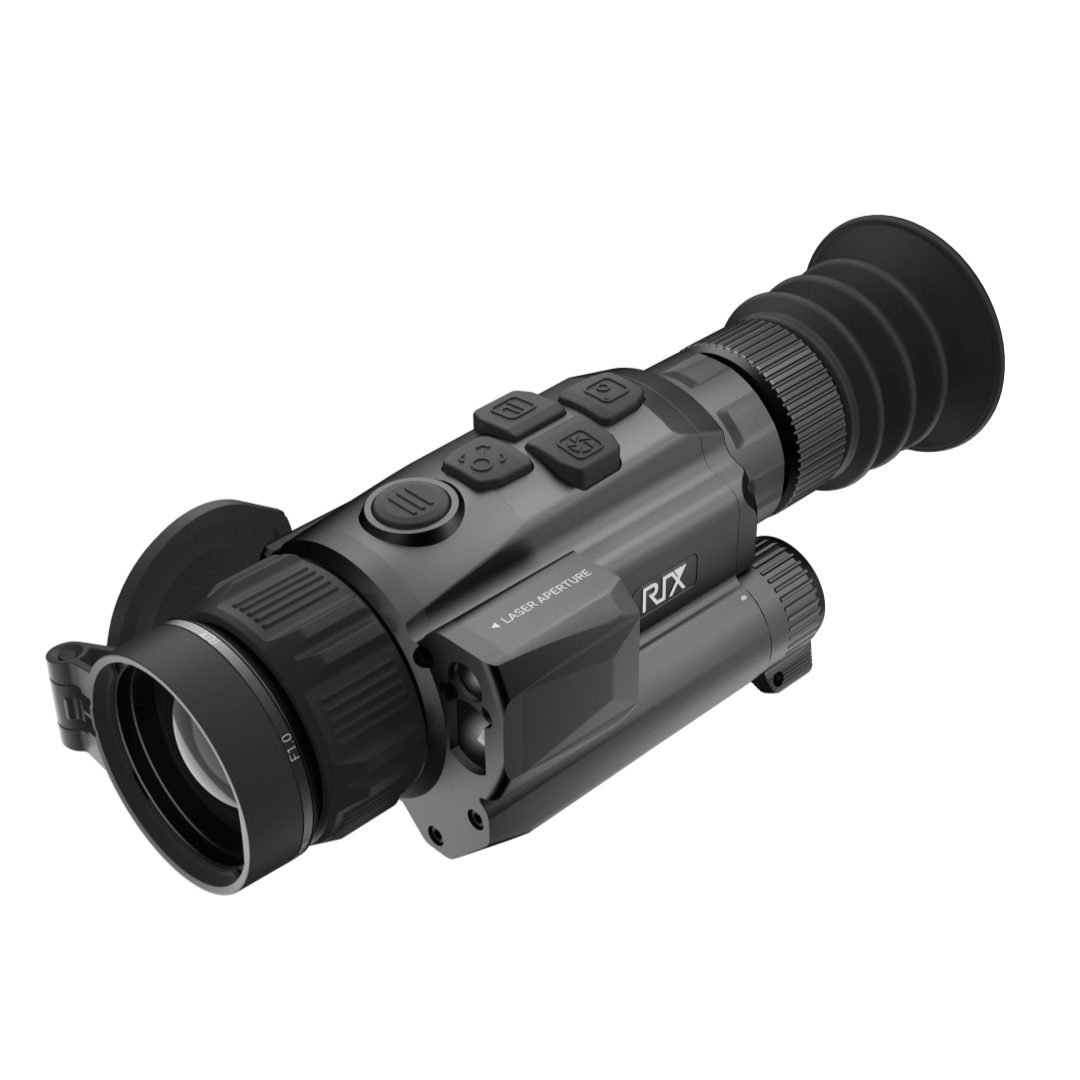

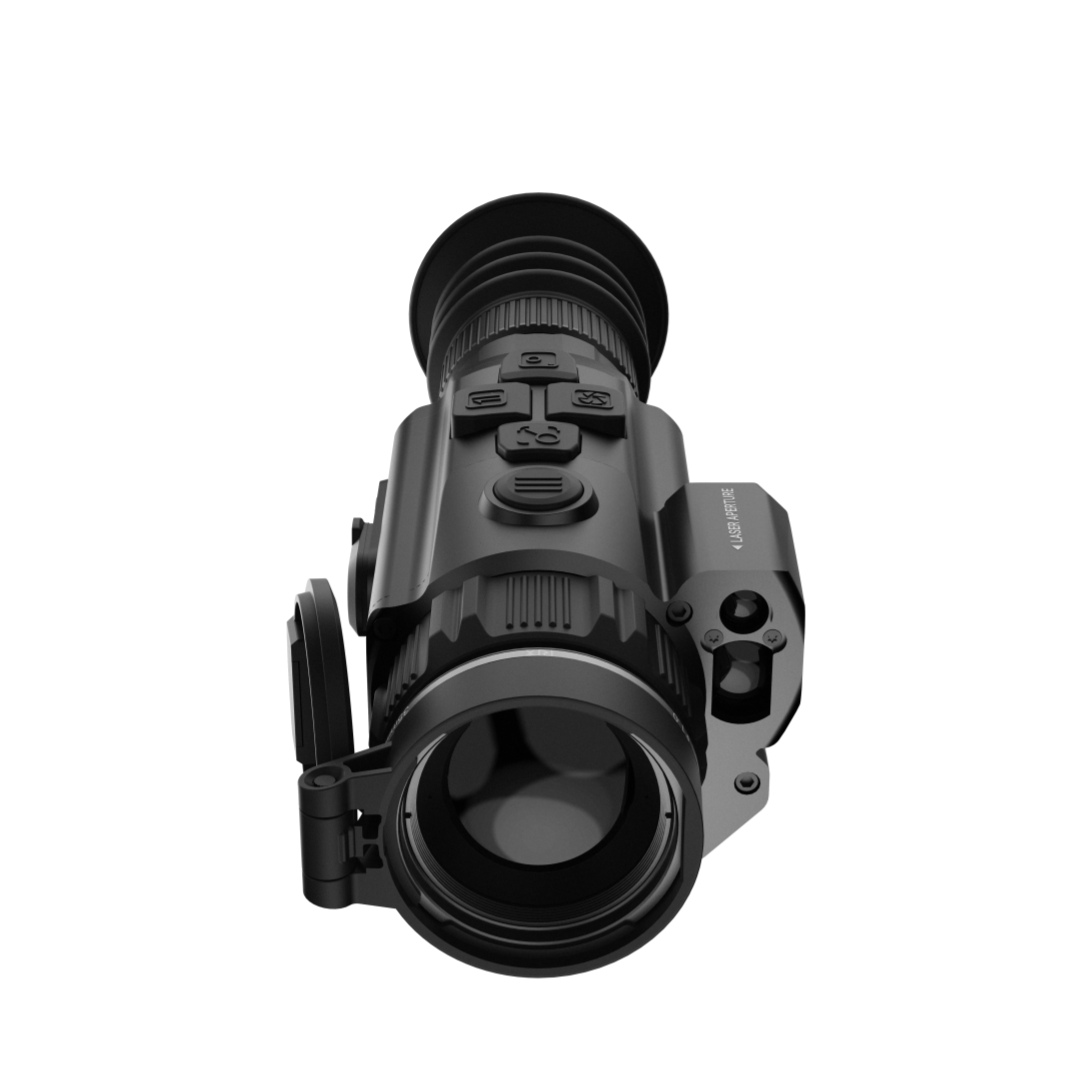

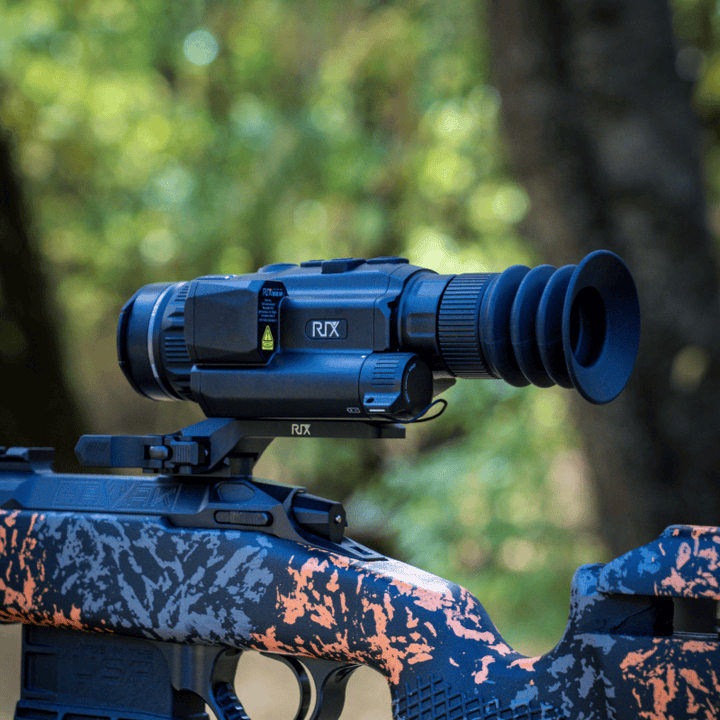

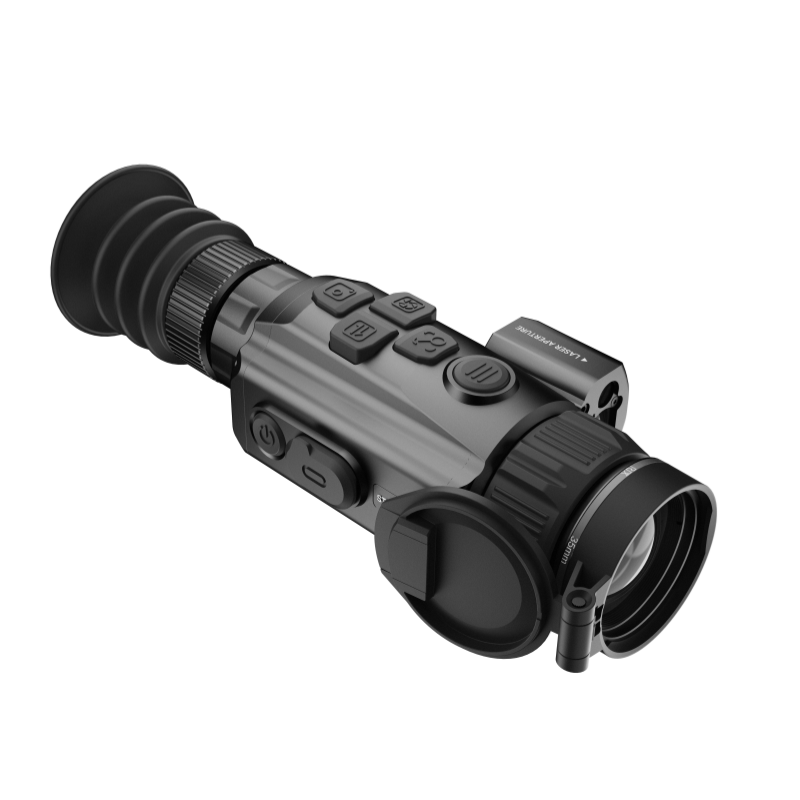

STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope
STORM S3R V2 Thermal Imaging Scope

STORM S3R V2 Thermal Imaging Scope

$1,999.00
/
Shipping calculated at checkout.
  • Low stock - 3 items left
  • Inventory on the way



CORE CHARACTERISTICS:
Sensor Resolution:
384×288
NETD:
<15 mK
Objective Lens:
35mm, F1.0
Base Magnification:
3.5×
Max. Measuring Range:
2187yd

STORM S3R V2

Sensor Specifications
TypeVOx Uncooled
Resolution384×288
Pixel Pitch12μm
NETD<15 mK
Frame Rate50 Hz
Optical Specifications
Objective Lens
35mm, F1.0



Optical Zoom




Base Magnification
3.5×



Digital Zoom
1~ 4×



Field of View (H×V), degrees/yd@100yd
7.5°×4.6°/13.2yd×8.1yd



Eye Relief
52mm



Diopter Adjustment
-5D to +5D



Detection Range
1969yd



Display Specifications
Type
AMOLED



Resolution
1920x1080 0.49 inch



Laser Rangefinding & Ballistic Calculation
Max. Measuring Range
2187yd



Measurement Accuracy
±1.09yd



Ballistic Calculation
Yes, 5 Zeroing Profiles Supported



Wi-Fi
Wi-Fi / App
Support (RIX+)



Video Recorder
Video / Photo Resolution
1744x1027



Video / Photo Format
.mp4 / .jpg



Built-in Memory
64GB



Physical Specifications
Degree of Protection
IP67



Operating Temperature Range
-4°F to +122°F



Weight
1.16 lb



Dimension
6.4×2.9×2.6 in



Connections and Compatibilities
Battery Type
18650



Operating Time on Battery Pack (at t=72°F)
4 h



External Power Supply
5V (Type-C USB)



Max Recoil Power on Rifled Weapon (Eo)
1000g / 6000J



Compatible Mounts
Picatinny Mount
