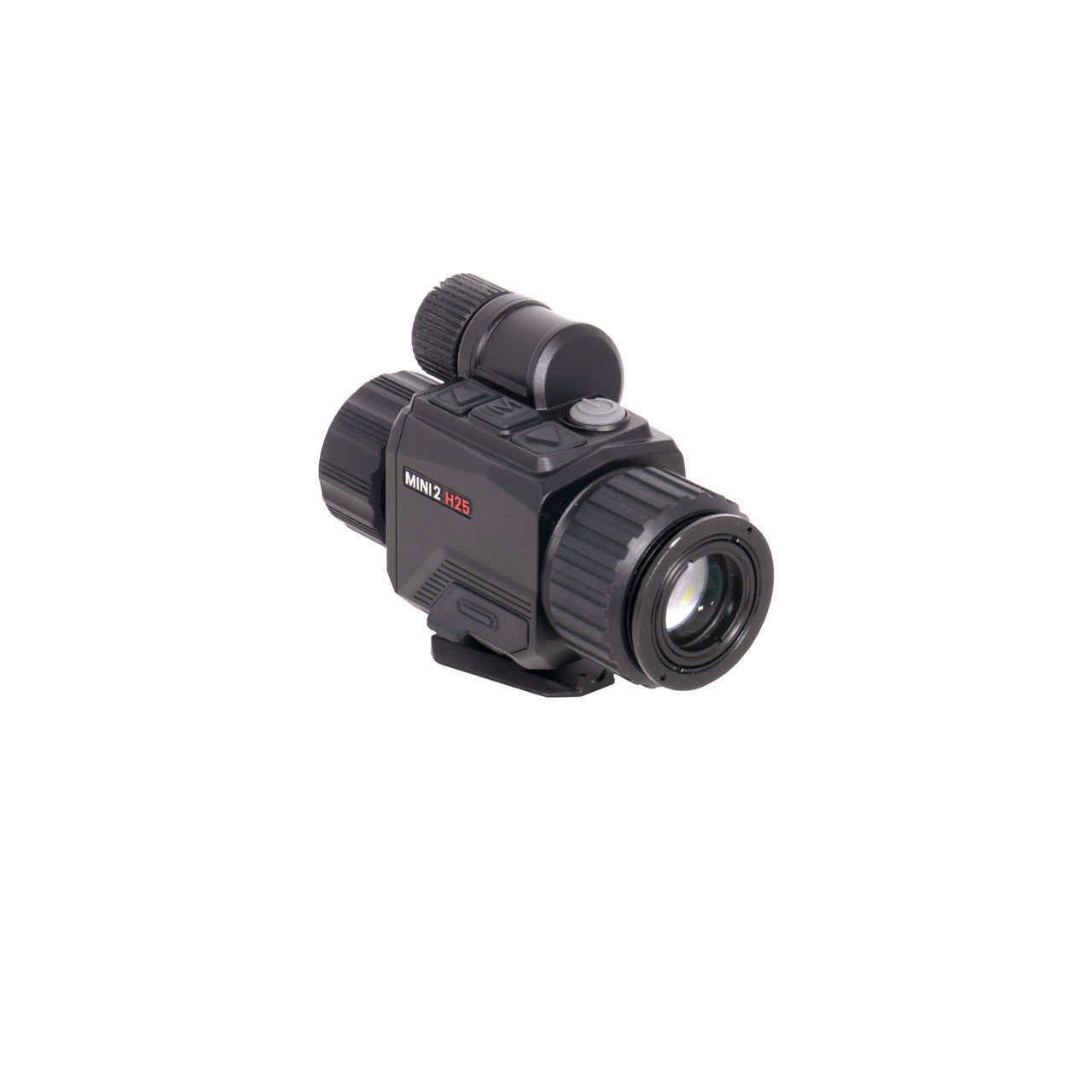

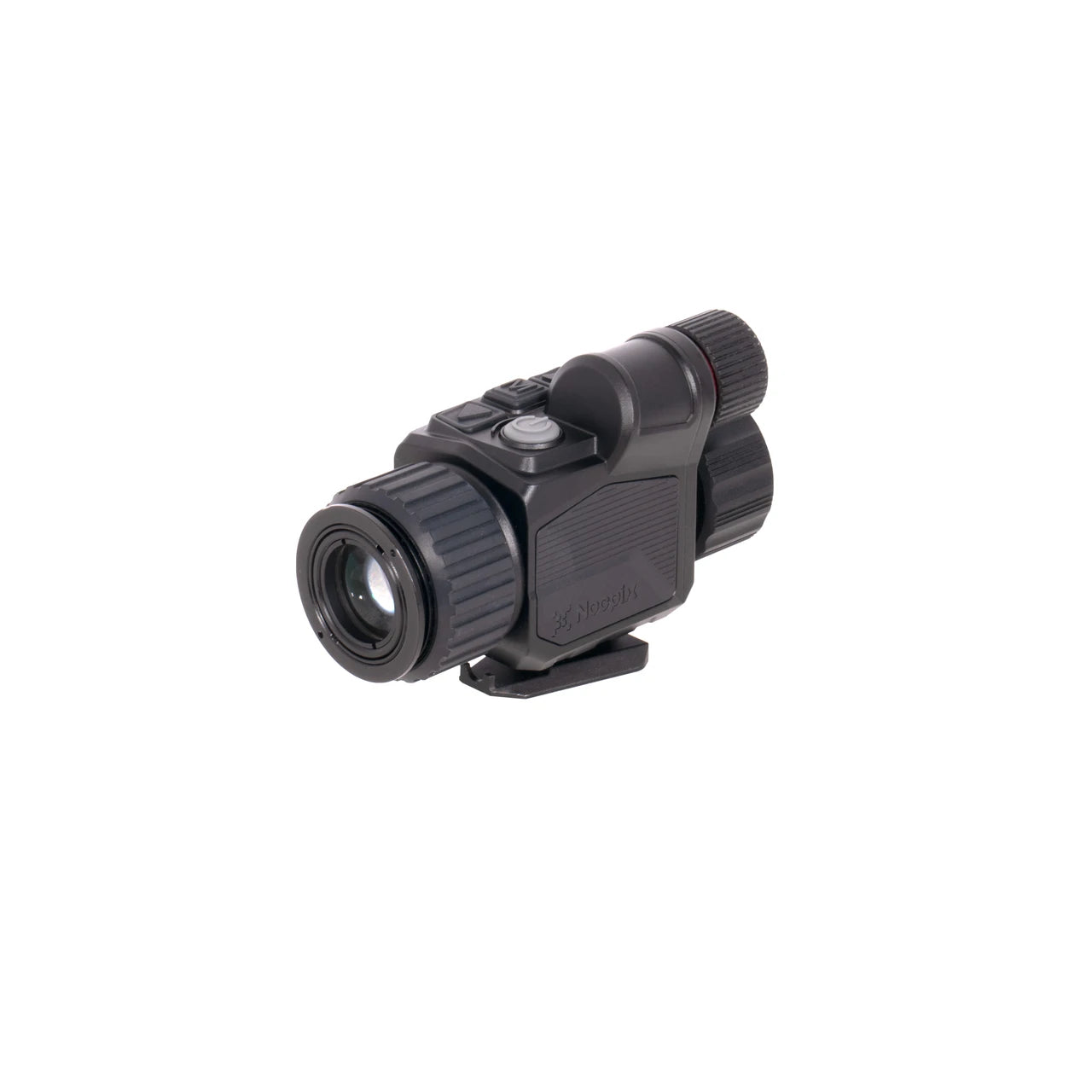

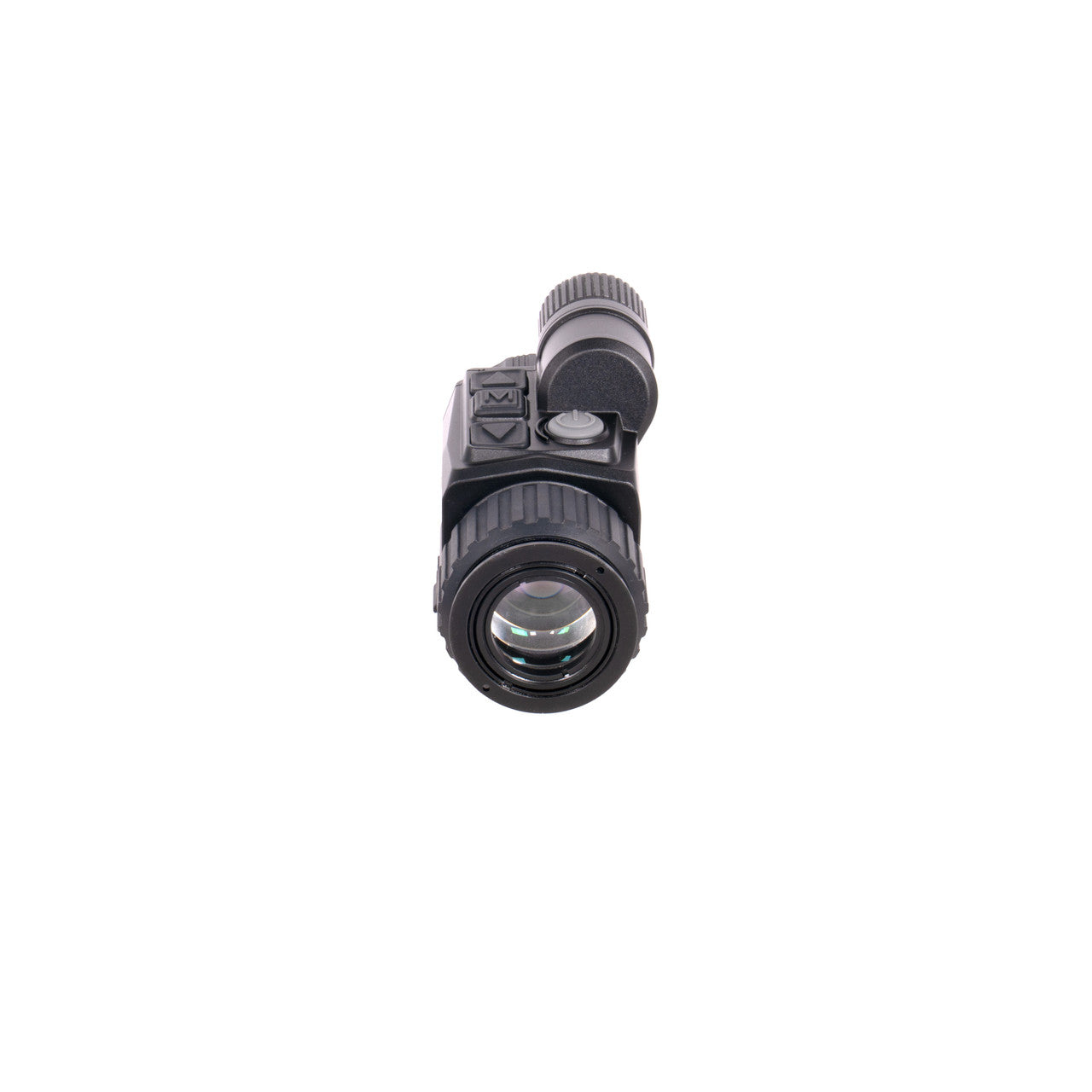

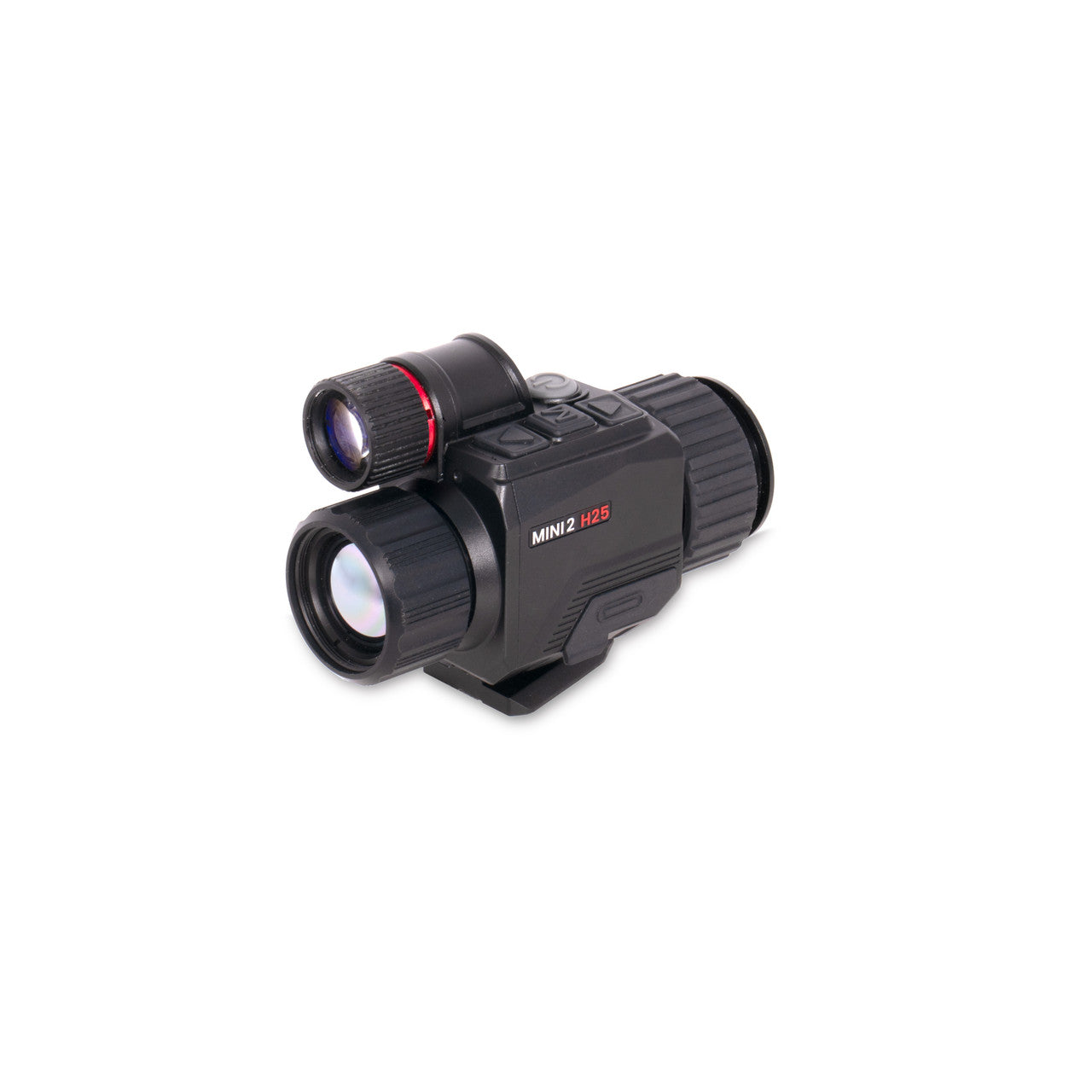

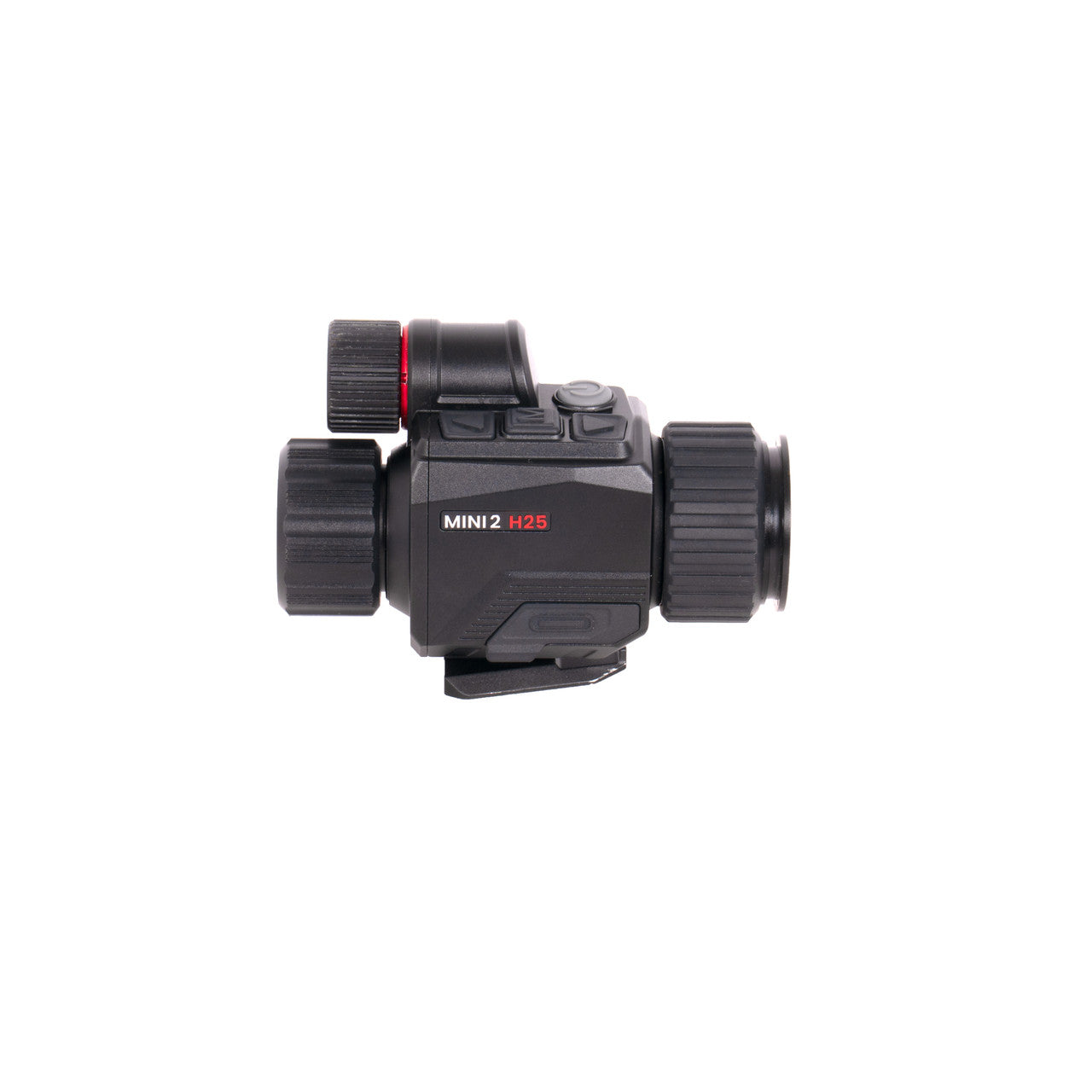

NOCPIX MINI2 H25 Helmet-Mountable Thermal Monocular 640x512

The Nocpix MINI2 H25 is a compact, lightweight thermal imaging device engineered for both handheld and helmet-mounted operation. Its versatile design enables seamless transition between use as a handheld monocular and integration with a helmet-mounting system for hands-free applications. Equipped with a high-performance 60 Hz, 12 μm thermal sensor and advanced Reality+ image processing, the MINI 2 delivers exceptional image clarity and detail across a wide range of conditions. The system features a 640×512 resolution thermal core paired with a 1280×1024 AMOLED display, providing a sharp, high-contrast viewing experience within a highly portable form factor. In addition to thermal imaging, the MINI2 incorporates digital night vision functionality with optional thermal overlay, allowing users to utilize fusion imaging for enhanced target recognition and situational awareness. The device also includes onboard audio and video recording capabilities, supported by 32 GB of internal storage, enabling users to capture, store, and review critical moments directly from the unit.

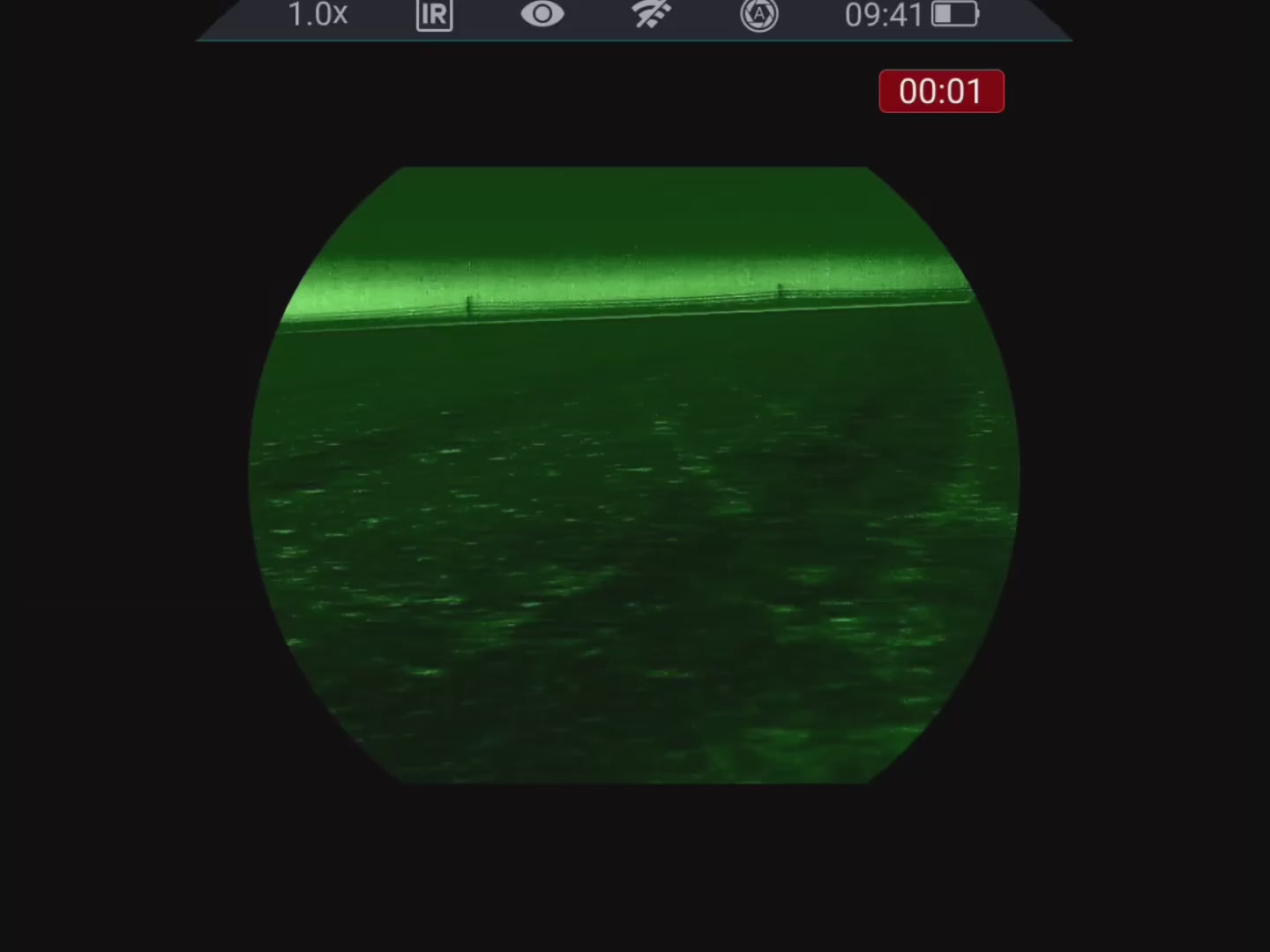

• Dual-sensor imaging system allows the user to transition between digital night vision, thermal, and thermal fusion overlay
• Lightweight helmet mounted design with integrated dovetail shoe
• Internal battery and the included external helmet mountable battery pack allows 4+ hours of operation
• Onboard photo, video, and audio recording.

• Sensor Specifications

  Device Technology

  Thermal Imaging

  Sensor Resolution

  640x512 NV 960x540

  Sensor Type

  Nocpix 640

  Sensor Pixel Size

  12 µm

  Thermal Sensitivity

  <15mk

  Sensor Frame Rate

  60hz

  Non-Uniformity Correction (NUC)

  Manual, Automatic, Semi-Automatic

  • Physical

    Mounting Interface

    QD Picatinny

    Housing Material

    Aluminum

    Weight

    8.47oz

    Height

    2.54"

    Width

    1.72"

    Length

    4"
