The Dark 30 Defiance PTZ gives you the flexibility to tailor your camera’s display to the mission at hand. With five thermal imaging palettes at your fingertips, you can switch between white hot and black hot for easy hotspot detection or easily identify the minute features of distant targets with rainbow, magenta, or green hot modes. Whether you're scouting for distant targets or tracking movement in rough terrain, the Defiance ensures you're seeing exactly what you need to.
What's in the box
Camera
Screen
HDMI Cable
Magnetic Feet
Suction Cup Feet
- Variable Speed Remote Control Enjoy precise control over the device's movement with a variable speed remote control that allows you to adjust motion to suit different surveillance or observation needs.
- Sleep Mode Conserve power efficiently with an integrated Sleep Mode that temporarily powers down non-essential functions while maintaining readiness for rapid reactivation.
- Return to Home Function Automatically return the device to its original starting point with the built-in Return to Home function, providing convenience and peace of mind during extended operations or in case of signal loss.
- 384x288 Thermal Imaging Sensor Capture clear thermal visuals even in total darkness with a high-resolution 384x288 thermal imaging sensor, ideal for night-time navigation, surveillance, or search-and-rescue applications.
- Infinite 360° Panning Experience complete situational awareness with continuous 360-degree panning, allowing for seamless monitoring without the limits of mechanical stops.

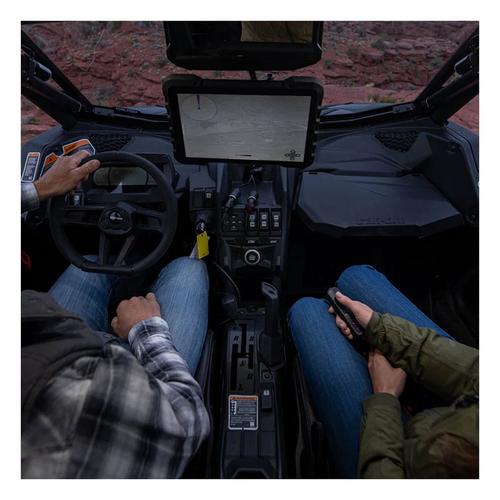

- Low Latency HDMI-Compatible Wired Screen View live footage in real time with a low latency wired HDMI-compatible display, ensuring smooth and accurate visual feedback with minimal delay.
- App Control on the Dark 30 App Access full functionality remotely through the user-friendly Dark 30 mobile app, giving you control and monitoring capabilities right from your smartphone or tablet.
- Parameter,Value
- Device Technology,Thermal Imaging
- "Sensor resolution, pixels",384x288
- Frame rate,60 fps
- Pixel size,17 micron
- Spectral range,8 - 14 μm
- Detector NETD,<40 mK
- Color palettes,5
- Detection range yd,1250 yds
- Lens material,Germanium
- F/# NUMBER (lens),1
- Lens diameter,30 mm
- Focal length,30 mm
- Digital zoom,1-8x
- Magnification,n/a
- Field of View Horizontal,20 degrees
- Field of View Vertical,15degrees
- Field of View Diagonal,25degrees
- Water Resistance,IP66
- Pan angle,Continuous 360degrees
- Tilt angle,Straight downward to 45 degrees above horizontal
- Body Material,Aluminum
- Width,"6.65"""
- Depth,"7.68"""
- Height,"7.8"""
- Weight,111 oz
- Operating Temperature Range ∘F,−4∘F x 122degrees F
- Ports,"1 TF card slot, 2 HDMI ports, 2 DC ports"
- Display type,LCD
- Screen Size,"10.1"""
- Power Supply,12VDC
- Camera Amperage @ 12V DC,750 mA
- Display Amperage @ 12VDC,320 mA
- Adaptor Connection with both Camera and Display,1200 mA
