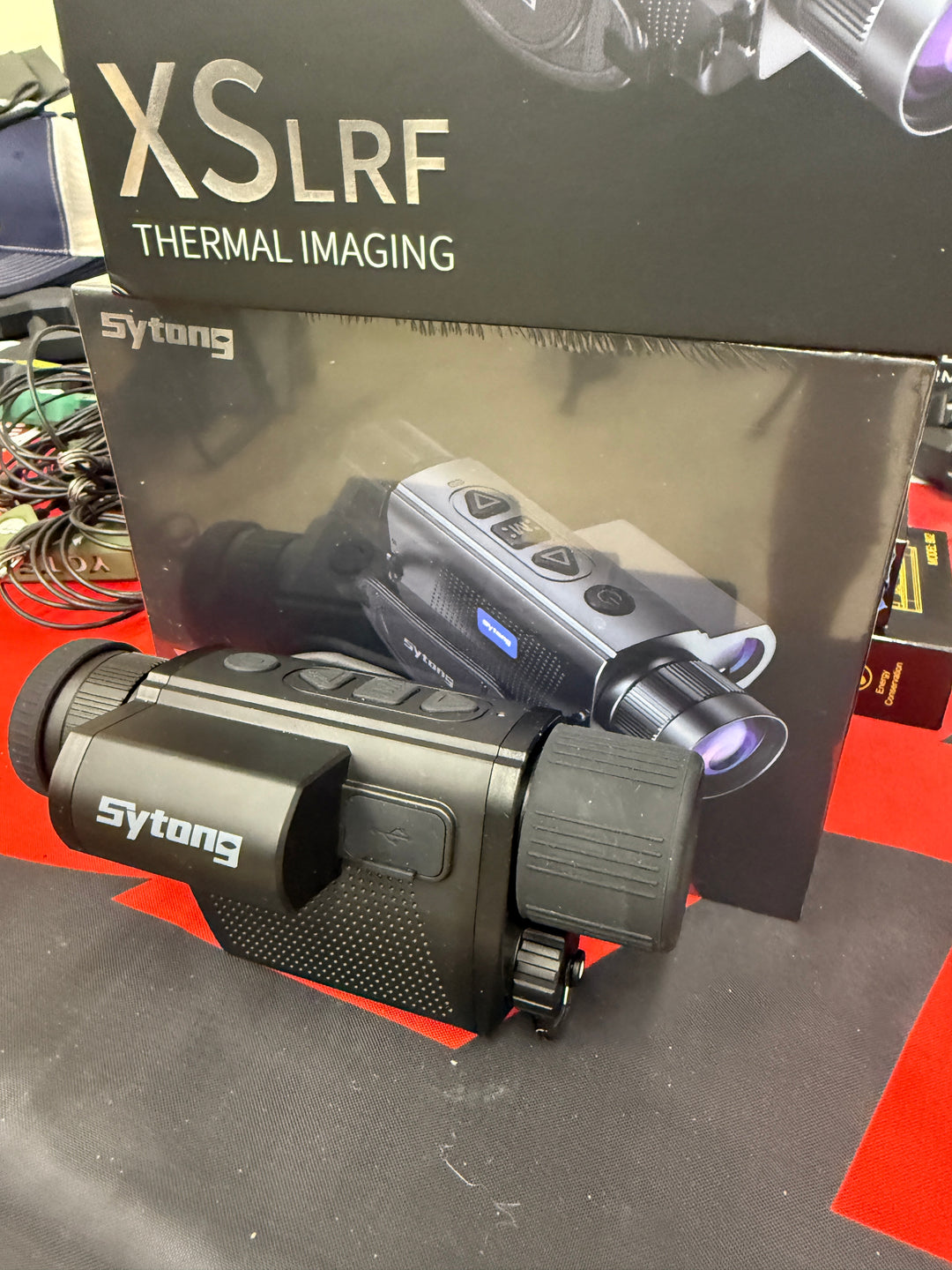

Sytong XS 640 35mmLRF Scanner SHOP DEMO

Shop Demo- used for videos and display demo

Full warranty applies (3 year)

Sytong XS06 Series LRF Thermal Handheld Monocular With Rangefinder

The Sytong XS06 Series LRF features Sytong’s 12 micron, 640×512, sub 18mk NETD sensor combined with a 25/35mm/F1.0 focal length. Power is provided with a single replaceable 18650 battery.

Specifications:

Sensor

Type: uncooled
Resolution, pixels: 640×512
Frame rate: 50 Hz
Pixel pitch: 12μm
NETD: <18mK

Optical Characteristics

Objective lens: f25/35 / F1.0
Magnification: 1.2X
Continuous digital zoom: x1 / x2 / x4 / x8
Eye relief: 20 mm
Dioptre adjustment: +5/-5 D
Detection distance（1.7m high 0.5m wide）: 1250m
Close-up range: 5m-∞
Field of view: 17.5°x13.1°

Display

Colour Palettes: Black Hot, White Hot, Red Hot, Fusion, Sky
Type / Resolution: 0.39 inch / AMOLED / 1024X768

Operational characteristics

3D Gyroscope: no
Power supply: 3-4.2 V
Battery: 18650 /3200mAh
External power supply: 5V (USB)
Operating time (at t=22℃): 5 hours
Max. recoil power, Joules:
Waterproof rating: IP66
Operating temperature: ﹣20℃…50℃
Dimensions: 156X54X75mm
Weight: 308g

Video recorder

Video / photo resolution: 1024×768
Video / photo format: .mp4 / .jpg
Memory type: Built-in 32G memory card

Wifi channel

Frequency: 2.4GHz
Standard: 802.11 b/g
Line-of-sight reception range: 15m

Rangefinder

Wavelength: 905nm
Max. measuring range: 1200m
Measuring accuracy: +/- 1m
