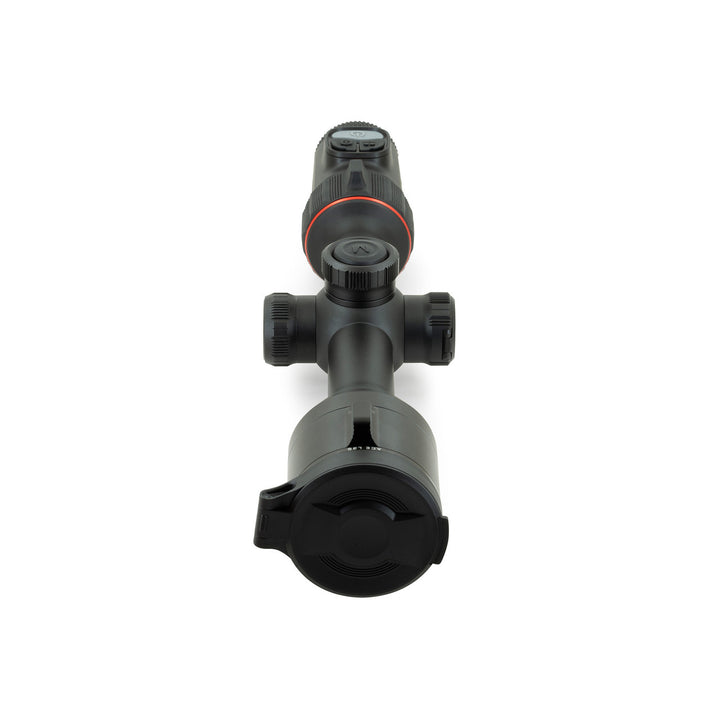

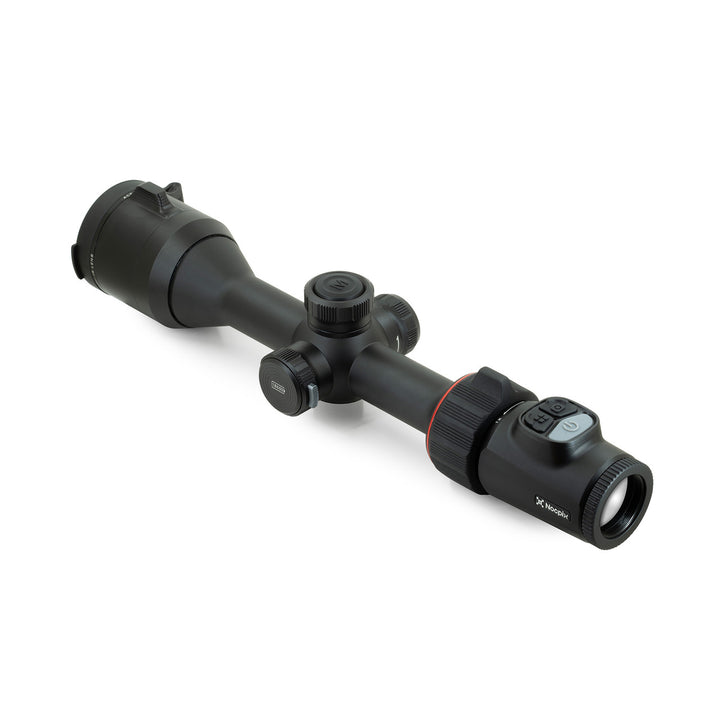

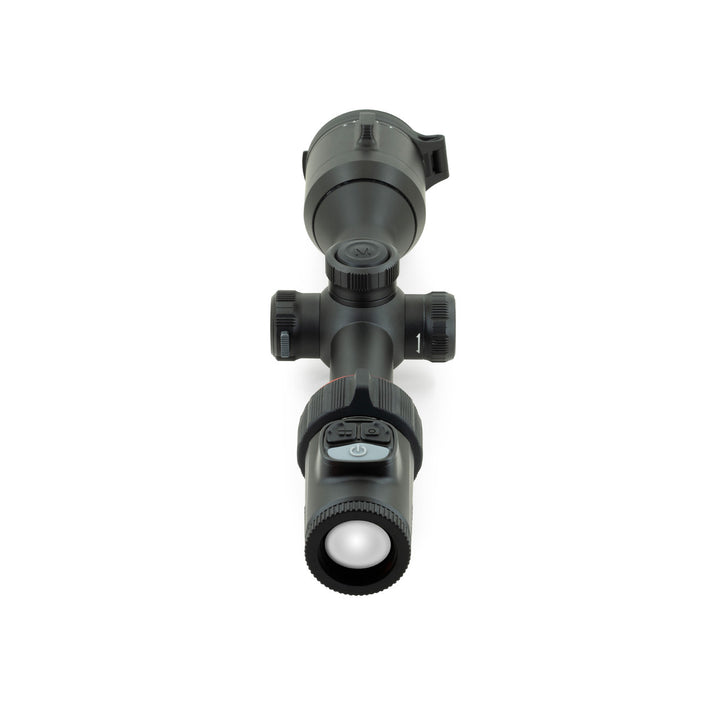

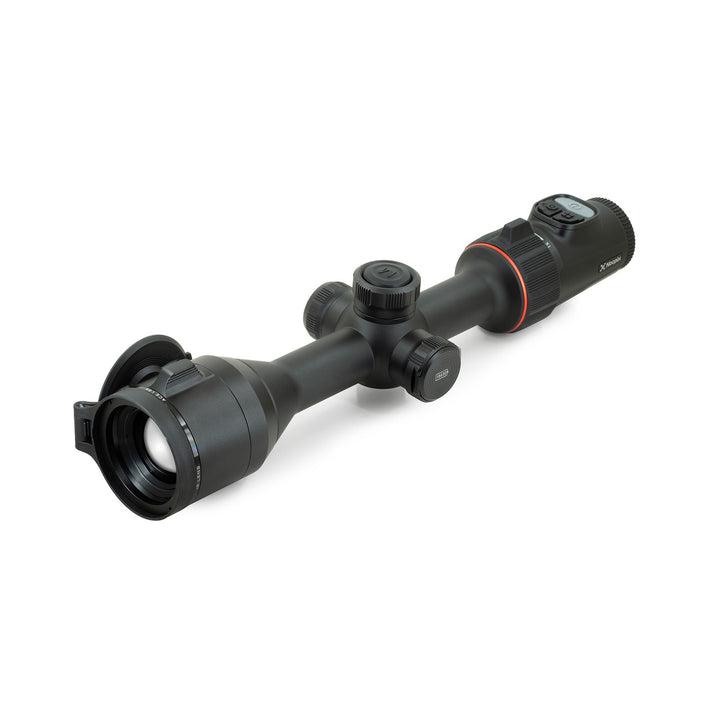

ACE L35 Thermal Weapon Sight Oc. Magnifier 384x288 35mm
ACE L35 Thermal Weapon Sight Oc. Magnifier 384x288 35mm
ACE L35 Thermal Weapon Sight Oc. Magnifier 384x288 35mm
ACE L35 Thermal Weapon Sight Oc. Magnifier 384x288 35mm
ACE L35 Thermal Weapon Sight Oc. Magnifier 384x288 35mm

ACE L35 Thermal Weapon Sight Oc. Magnifier 384x288 35mm


Regular price$2,799.00
/
Shipping calculated at checkout.
  • Low stock - 1 item left
  • Inventory on the way



The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 18 mK NETD sensor for an incredibly detailed and precise image.

New for 2025, the ACE L35 offers a more affordable option in the ACE line for predator and hog hunters who don't require a laser rangefinder or higher resolution sensor. Packing tremendous value, the ACE L35 retains all other features of ACE line of thermal rifle scopes.



  • Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
  • A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
  • High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
  • Simplified controls offer improved ergonomics and a better user experience in the field.
  • Uses common 18650 style rechargeable batteries.
  • A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
  • Charge through the unit with a unique lock-out USB-C port design.
Display Type

AMOLED

Eye Relief

50mm

Objective Focal Length

35mm

Digital Magnification

4X

Diopter Range

-5 to +5

Vertical Angular Field of View

5.7°

Horizontal Angular Field of View

7.5°

Focusing Mechanism

Manual Focus

Objective F#

0.9

Objective Diameter

35mm

Objective Lens Material

Germanium

Display Resolution

2560×2560

Detection Range

1970 Yards

Optical Magnification

3X

Warranty

5 Years

Startup Time

<10 Seconds, Instant from Standby

Color Palettes

White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

Picture-in-Picture

Yes

Storage Capacity

64GB

Connector Output

Power/Data

User-Updatable Firmware

Yes

Mobile App

Yes

Run Time

7+

Power Source

USB-C External, 18650 Battery, Built-In Battery Pack

One-Shot Zero

Yes

Stand-by Mode

Yes

Connector Type

USB-C

External Power Source

USB-C

Country of Manufacture

China

Wifi

Yes

Onboard Recording

Yes

Image Capture

Yes

Video Output

Yes

Operating Temperature Range

-4°F~122°F

Recoil Rating

1000 g/s² (300 Win./7mm Mag)

Ingress Protection

IP67

Sensor Type

Nocpix 384

Sensor Pixel Size

12μm

Thermal Sensitivity

<18mk

Non-Uniformity Correction (NUC)

Manual, Automatic, Semi-Automatic

Sensor Frame Rate

60hz

Device Technology

Thermal Imaging

Sensor Resolution

384×288
